A series of extract air units with integrated heat pump for energy efficient blocks of flats


The majority of existing blocks of flats only have one extract air ventilation system (F-system). In cases where no supply and extract air system (FTX) exists, there is an option to recover energy from extract air.

EcoHeater is an extract air unit with integrated heat pump. The compressor is speed controlled via a frequency inverter, which means that EcoHeater is constantly adjusting in relation to the amount of energy that is available to recover. When tenants cook or take a shower, EcoHeater also recovers the extra energy that arises as a result of a higher moisture content and increased air flow. This is unique to EcoHeater.

EcoHeater is simple to install and offers substantial energy savings.

  • Easier and less costly to install than installing supply air ducts
  • Gives energy savings comparable to conversion to a FTX-system
  • Installation does not disturb tenants
  • Manages 6–60 flats/units
  • Air flow 0,2–3,0 m3/s
  • 6 sizes
  • Dimensions and weights
  • Performance and power



Customised module dimensions to facilitate transport

When we develop products, we place great emphasis on making it easy and cost effective to transport them into buildings. Where physically possible, we have made the module elements so short that they can enter through a 900 mm opening.

We hope this will make it easier for you to get the unit into the building, and even into narrow lifts.

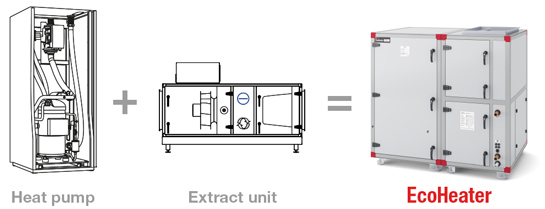

Two in one

Property owners wanting to recover energy from extract air have traditionally been advised to purchase a heat pump and extract air unit separately from different suppliers. With the new EcoHeater, we have created a prefabricated and highly efficient extract air unit with integrated heat pump.

What you get is a complete unit from one supplier, with control equipment custom-designed for apartment buildings.



Unique versatility

The compressor is speed controlled via a frequency inverter, which means that EcoHeater is constantly adjusting in relation to the amount of energy that is available to recover.

When tenants cook or take a shower, EcoHeater also recovers the extra energy that arises as a result of a higher moisture content and increased air flow.

This is unique to EcoHeater!

Smart ventilation increases property value

By installing Home Concept EcoHeater in a building, energy is saved which means lower operating costs.

This video shows you the calculation model and gives you an example of how smart ventilation can increase property value.

Read article

Reference cases for EcoHeater

Fast installation

The Skvallertorget housing association in central Kalmar wanted to improve energy efficiency at the property and chose EcoHeater.

Learn more



Prepared for the future

All 17 stairwells with 10 storeys in the Andersberg district in Halmstad have been fitted with EcoHeaters in stages.

Learn more






Build your
Home Concept EcoHeater

IV Produkt Designer is a product selection program designed for IV Produkt’s air handling units. The program generates unit drawings and information on performance, which can be exported to various CAD applications in the form of intelligent files.



Download IV Produkt Designer

Home Concept EcoHeater
brochure

Download brochures and technical documentation in our document portal. Here you can also find questions and answers as well as a knowledge bank where we publish tips, recommendations and more.

Download brochure
