EcoCooler

Integrated speed-controlled DX cooling unit with stepless cooling power

The EcoCooler integrated cooling unit is available for the Envistar Top, Envistar Flex and Flexomix units.

Why choose EcoCooler?

The EcoCooler integrated cooling unit is available for the Envistar Top, Envistar Flex and Flexomix units.

Units with EcoCooler are always tested at our test facility before delivery. Considerably less energy is required when EcoCooler is integrated in an air handling unit, rather than when the cooling unit is external.

Some buildings encounter major variations in air flow, while requirements are strict for accurate control of the supply air temperature. EcoCooler meets the requirements through stepless control of the cooling power via a frequency inverter.

m³/hm³/s


		Rotor w/ cooling unit	Counter-flow exchanger w/ cooling unit
28
22
17
12
10
09
06
04
	m³/s 0.0 0.5 1.0 1.5 2.0 2.5 3.0

m³/hm³/s


		Rotor w/ cooling unit	Counter-flow exchanger w/ cooling unit	Plate heat exchanger w/ cooling unit
1280
1080
980
850
740
600
480
400
360
300
240
190
150
100
	m³/s 0.0 2.0 4.0 6.0 8.0 10.0 12.0

Filter within EcoCooler

m³/hm³/s

Compare

Show all sizes

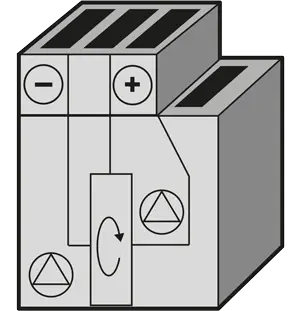

Envistar Top with rotary heat exchanger and EcoCooler

Air flow

Min:0.12m³/s

Max:3m³/s

Envistar Top with counter-flow heat exchanger and EcoCooler

Air flow

Min:0.12m³/s

Max:3m³/s

Envistar Flex with rotary heat exchanger and EcoCooler

Air flow

Min:0.22m³/s

Max:11.46m³/s

Envistar Flex with counter-flow heat exchanger and EcoCooler

Air flow

Min:0.22m³/s

Max:8.06m³/s

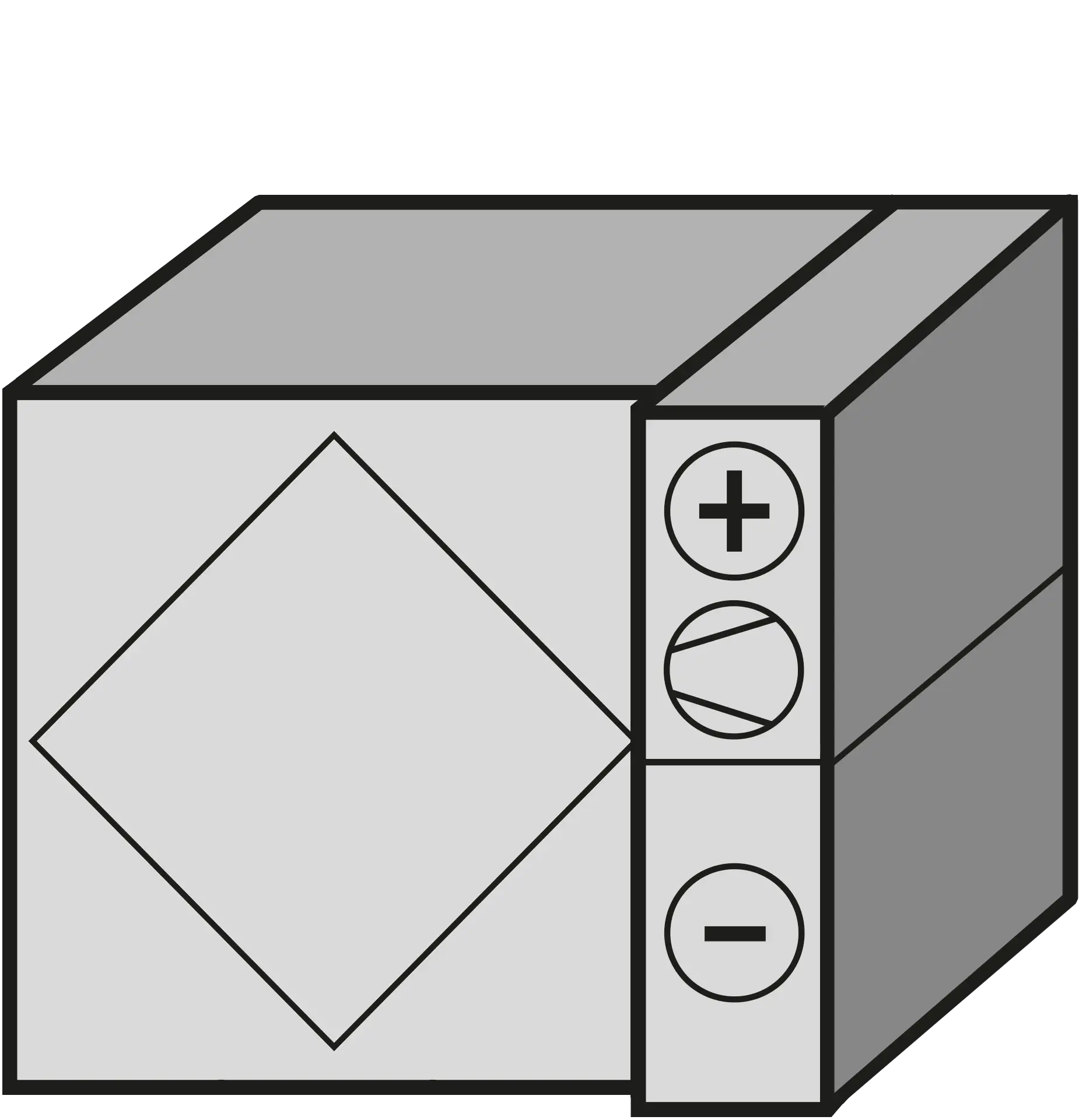

Envistar Flex with plate heat exchanger and EcoCooler

Air flow

Min:0.33m³/s

Max:11.46m³/s

IV Produkt Designer Product selection software

For object-specific data, use our product selection software

IV Produkt Designer

Envistar Flex with coil recovery and EcoCooler

Air flow

Min:0.22m³/s

Max:11.46m³/s

Flexomix with rotary heat exchanger and EcoCooler

Air flow

Min:0.17m³/s

Max:11.46m³/s

Flexomix with counter-flow heat exchanger and EcoCooler

Air flow

Min:0.22m³/s

Max:8.06m³/s

Flexomix with plate heat exchanger and EcoCooler

Air flow

Min:0.33m³/s

Max:11.4m³/s

Technical dataforEcoCooler

Here you will find dimensions and weights as well as power and performance information about EcoCooler .

m³/hm³/s

Size	Cooling recovery	Dimension (mm)			Weight (kg)	System voltage
Size	Cooling recovery	Width	Height	Length	Weight (kg)	System voltage
100-2V	-	1360	1090	820	204	400VAC
100-2V	Yes	1360	1090	1660	263	400VAC
150-2V	-	1460	1470	820	245	400VAC
150-2V	Yes	1460	1470	1660	313	400VAC
190-2V	-	1740	1470	820	275	400VAC
190-2V	Yes	1740	1470	1660	350	400VAC
240-2V	-	1740	1686	820	291	400VAC
240-2V	Yes	1740	1686	1660	370	400VAC
300-2V	-	1956	1686	820	340	400VAC
300-2V	Yes	1956	1686	1660	425	400VAC
360-1V	-	1956	2060	890	391	400VAC
360-1V	Yes	1956	2060	1730	482	400VAC
360-2V	-	1956	2060	890	391	400VAC
360-2V	Yes	1956	2060	1730	482	400VAC
400-1V	-	2220	1900	890	-	400VAC
400-1V	Yes	2220	1900	1730	-	400VAC
400-2V	-	2220	1900	890	373	400VAC
400-2V	Yes	2220	1900	1730	469	400VAC
480-0V	-	2330	2060	890	-	400VAC
480-0V	Yes	2330	2255	1730	-	400VAC
480-1V	-	2330	2060	890	460	400VAC
480-1V	Yes	2330	2255	1730	560	400VAC
480-2V	-	2330	2060	890	468	400VAC
480-2V	Yes	2330	2255	1730	568	400VAC
600-1V	-	2540	2270	890	520	400VAC
600-1V	Yes	2540	2465	1730	631	400VAC
600-2V	-	2540	2270	890	531	400VAC
600-2V	Yes	2540	2465	1730	642	400VAC
600-3V	-	2540	2270	890	602	400VAC
600-3V	Yes	2540	2465	1730	713	400VAC
740-2V	-	2820	2675	890	590	400VAC
740-2V	Yes	2820	2675	1730	712	400VAC
740-3V	-	2820	2675	890	679	400VAC
740-3V	Yes	2820	2675	1730	801	400VAC
850-1V	-	2900	2935	890	601	400VAC
850-1V	Yes	2900	2935	1730	730	400VAC
850-2V	-	2900	2935	890	663	400VAC
850-2V	Yes	2900	2935	1730	792	400VAC
850-3V	-	2900	2935	890	685	400VAC
850-3V	Yes	2900	2935	1730	814	400VAC
980-1V	-	3200	3085	890	694	400VAC
980-1V	Yes	3200	3085	1730	833	400VAC
980-2V	-	3200	3085	890	824	400VAC
980-2V	Yes	3200	3085	1730	963	400VAC
1080-1V	-	3000	3195	890	1055	400VAC
1080-1V	Yes	3000	3195	1730	1378	400VAC
1080-2V	-	3000	3195	890	1064	400VAC
1080-2V	Yes	3000	3195	1730	1387	400VAC
1080-3V	-	3000	3195	890	1160	400VAC
1080-3V	Yes	3000	3195	1730	1483	400VAC
1280-1V	-	3180	3375	890	1106	400VAC
1280-1V	Yes	3180	3375	1730	1427	400VAC
1280-2V	-	3180	3375	890	1120	400VAC
1280-2V	Yes	3180	3375	1730	1441	400VAC
1280-3V	-	3180	3375	890	1235	400VAC
1280-3V	Yes	3180	3375	1730	1556	400VAC

Technical data for related products

Documentation forEcoCooler

Here you will find general documentation for this product series. Download the latest versions of product brochures, instruction manuals, certificates, and other documents.

Your air handling unit

If you are looking for information about your AHU, search using the order number.

Document	Document type	Language	Version
Brochure EcoCooler	Brochure	English	1	4/2024
Operation and maintenance EcoCooler	Operation and maintenance	English	05	9/2025
Commissioning record AHU	Commissioning	English	06	12/2025
Assembly Instructions Envistar Flex	Assembly instruction	English	07	10/2025
Assembly Instructions Envistar Top	Assembly instruction	English	04	11/2023
BACnet Addresses for EcoCooler and ZON, examples	Configuration and settings	English	-	-
Example AHU BACnet BYP	Configuration and settings	English	-	-
Example AHU BACnet ODS	Configuration and settings	English	-	-
Example AHU Modbus BYP	Configuration and settings	English	-	-
Example AHU Modbus ODS	Configuration and settings	English	-	-
Modbus addresses for Counter flow, Plate and Run around coil heat exchangers, examples	Configuration and settings	English	-	-
EPD Environmental Product Declaration – EcoCooler	Certificates and declarations	English	-	2025
