Envistar Home Concept

FTX units for blocks of flats

Centrally located air handling units with integrated controls for renovation and new construction of blocks of flats.

m³/hm³/s

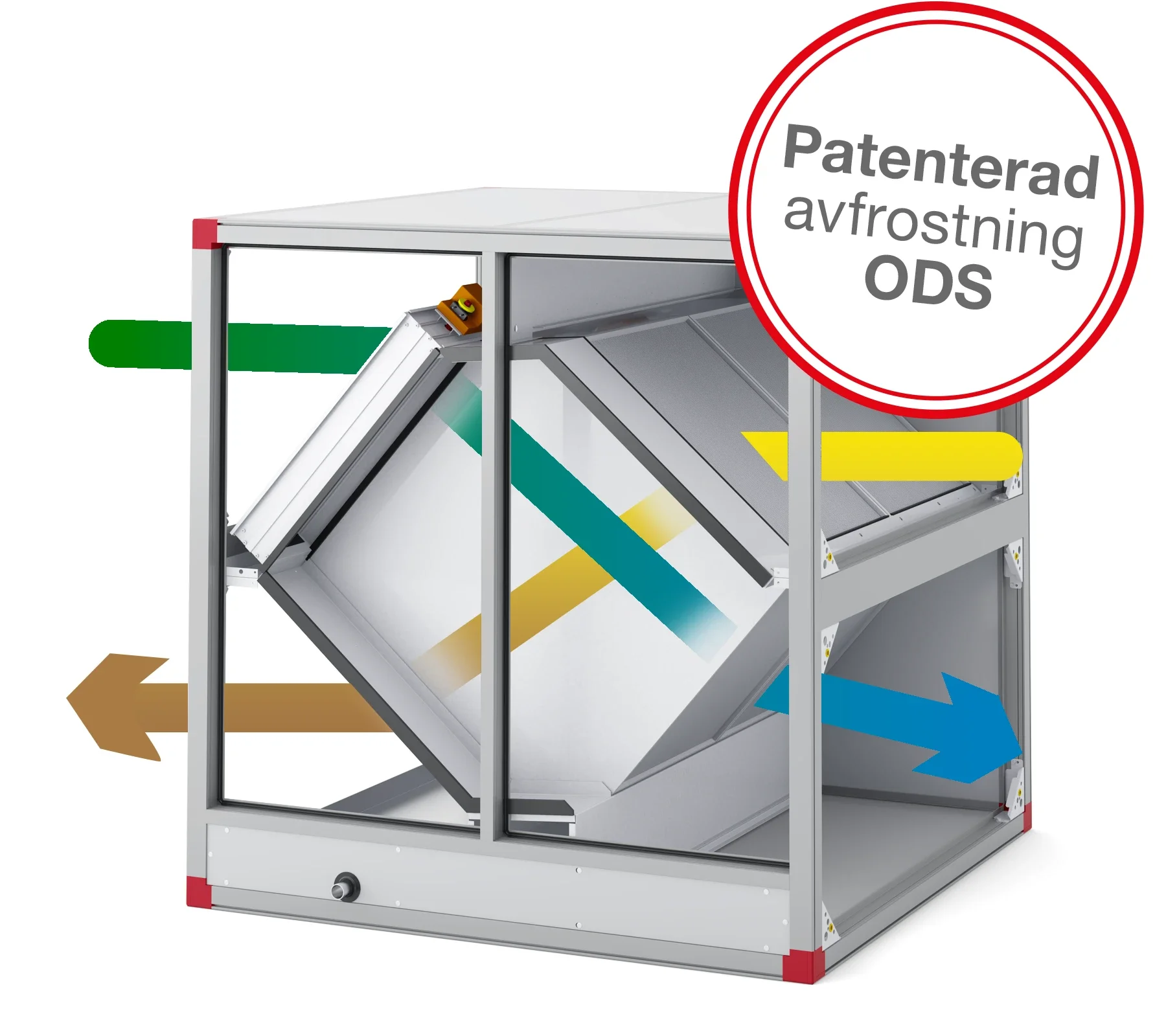

		Counter-flow exchanger	Counter-flow exchanger w/ cooling unit
28
22
17
12
10
09
06
04
	m³/s 0.0 0.5 1.0 1.5 2.0 2.5 3.0

m³/hm³/s


		Counter-flow exchanger	Counter-flow exchanger w/ cooling unit
850
740
600
480
400
360
300
240
190
150
100
060
	m³/s 0.0 1.5 3.0 4.5 6.0 7.5 9.0

Filter within Envistar Home Concept

m³/hm³/s

Compare

Show all sizes

Home Concept Envistar Top

Air flow

Min:0.12m³/s

Max:3m³/s

Home Concept Envistar Top with EcoCooler

Air flow

Min:0.12m³/s

Max:3m³/s

Home Concept Envistar Flex

Air flow

Min:0.13m³/s

Max:8.5m³/s

Home Concept Envistar Flex with EcoCooler

Air flow

Min:0.22m³/s

Max:8.06m³/s

IV Produkt Designer Product selection software

For object-specific data, use our product selection software

IV Produkt Designer

Product series	Heat recovery unit	Cooling / heating

Home Concept Envistar Top	Counter-flow heat exchanger	-	Technical data
Home Concept Envistar Top	Counter-flow heat exchanger	Integrated cooling unit	Technical data
Home Concept Envistar Flex	Counter-flow heat exchanger	-	Technical data
Home Concept Envistar Flex	Counter-flow heat exchanger	Integrated cooling unit	Technical data

Documentation forEnvistar Home Concept

Here you will find general documentation for this product series. Download the latest versions of product brochures, instruction manuals, certificates, and other documents.

Your air handling unit

If you are looking for information about your AHU, search using the order number.

Product status

ActiveDiscontinuedAll

	Document type	Language			Download/Share
Loading…

Control equipment with proprietary software

The entire range has integrated control equipment with software developed by us. We use Siemens Climatix hardware. The control equipment offers over 100 standard features to choose from so that you can optimise according to your needs. Air flow rates and temperatures can be optimised easily. The units can be connected to the web, IV Produkt Cloud or a parent system (BMS) via multiple communication protocols.

Project-specific electrical and control diagrams are included in the delivery. The unit has been function-tested and is ready for commissioning.

Full control with IV Produkt Cloud

IV Produkt Cloud is a cloud service for our air handling units with integrated controls, giving you and your colleagues the ability to monitor your systems wherever you are.

Always accessible wherever there is Internet access
All systems collected in one place
Alarm monitoring via PC or smartphone
Possible to analyse and act quickly
Control of the indoor climate in your properties everywhere and anytime

Learn more about IV Produkt Cloud

Advantages of IV Produkt Cloud

Ventilation adapted to needs of all tenants

Rental flats, short-term and elderly housing with a pleasant indoor temperature in focus.

Reference

Pleasant indoor climate 24 hours a day

Växjö, the greenest town in Europe, is growing really quickly. The new ICON landmark in Arenastaden will be the tallest building in the town. The building will accommodate 250 cooperative apartments, 4,500 sq m of office space, an aparthotel, a school for 500 students and a sky bar. The building covers a total area of 37,000 sq m.

Reference

Ongoing projects?

Together, let's find the optimal solution for you!
