ThermoCooler HP

Integrated reversible heat pump with stepless cooling and heating power

The reversible ThermoCooler HP heat pump can be integrated in our Envistar Top and Envistar Flex units.

Why choose ThermoCooler HP?

ThermoCooler HP is the optimal integrated reversible heat pump for the Envistar series.

All parts of the reversible heat pump are incorporated in a module section, which is located in the air handling unit. This means that you receive a total solution for heating ventilation air and comfort cooling in one unit. Since everything is integrated in the air handling unit, there is no need for heating coils, run-around coils or outdoor cooling installations. The installation is complete, CE-marked and always tested in our test facility before delivery.

A unit with integrated reversible heat pump is more energy efficient than a traditional cooling installation with external cooling unit and heating coil.

ThermoCooler HP – Smart ventilation creates new possibilities

7 sizes for Envistar Top

Air flow: 0.25–2.80 m³/s
Cooling power: 3–49 kW

14 sizes for Envistar Flex

Air flow: 0.25–10.4 m³/s
Cooling power: 3–49 kW

High EER and COP

EER up to 6.0 in the cooling mode
COP 6–15 in the heating mode, depending on outdoor temperature

CE marked

Complete CE marked cooling and heating installation

Cost-effective

Low installation and operating costs

IV Produkt Cloud

Can be controlled and monitored via cloud service

Explore IV Produkt Cloud

Easy Access

Short construction lengths for easy transport and reduced installation space

Variable air flows

Ideal for large variable air flows (VAV)

Frees up roof space

Requires no outdoor installations

No defrosting

No defrost cycle required

Air flow ranges for Envistar Top with ThermoCooler HP

m³/hm³/s


	Ecodesign Technical max	Reversible heat pump
28
22
17
12
10
09
06
	m³/s 0.0 0.5 1.0 1.5 2.0 2.5 3.0

Air flow ranges for Envistar Flex with ThermoCooler HP

m³/hm³/s


	Ecodesign Technical max	Reversible heat pump
1280
1080
980
850
740
600
480
400
360
300
240
190
150
100
	m³/s 0.0 2.0 4.0 6.0 8.0 10.0 12.0

Filter within ThermoCooler HP

m³/hm³/s

Compare

Show all sizes

Envistar Top with rotary heat exchanger and ThermoCooler HP

Air flow

Min:0.25m³/s

Max:3m³/s

Envistar Flex with rotary heat exchanger and ThermoCooler HP

Air flow

Min:0.25m³/s

Max:11.46m³/s

Technical dataforThermoCooler HP

Here you will find dimensions and weights as well as power and performance information about ThermoCooler HP.

m³/hm³/s

Size	Cooling recovery	Dimension (mm)			Weight (kg)	System voltage
Size	Cooling recovery	Width	Height	Length	Weight (kg)	System voltage
100-2V	-	1360	1090	790	220	400VAC
100-4V	Yes	1360	1090	-	-	400VAC
150-2V	-	1460	1470	790	260	400VAC
150-4V	Yes	1460	1470	-	-	400VAC
190-2V	-	1740	1470	790	290	400VAC
190-4V	Yes	1740	1470	-	-	400VAC
240-2V	-	1740	1686	790	310	400VAC
240-4V	Yes	1740	1686	-	-	400VAC
300-2V	-	1956	1686	790	370	400VAC
300-4V	Yes	1956	1686	-	-	400VAC
360-1V	-	1956	2060	890	425	400VAC
360-2V	-	1956	2060	890	425	400VAC
400-1V	-	1740	2060	890	400	400VAC
400-2V	-	1740	2060	890	400	400VAC
400-4V	Yes	1740	2060	-	-	400VAC
480-2V	-	2330	2060	890	510	400VAC
480-4V	Yes	2330	2060	-	-	400VAC
600-2V	-	2540	2270	890	630	400VAC
740-2V	-	2820	2675	890	740	400VAC
850-2V	-	2900	2935	890	790	400VAC
980-2V	-	3200	3085	890	900	400VAC
1080-2V	-	3340	3195	890	1260	400VAC
1280-2V	-	3520	3375	890	1380	400VAC

Technical data for related products

Documentation forThermoCooler HP

Here you will find general documentation for this product series. Download the latest versions of product brochures, instruction manuals, certificates, and other documents.

Your air handling unit

If you are looking for information about your AHU, search using the order number.

Document	Document type	Language	Version
Brochure ThermoCooler HP	Brochure	English	1	4/2024
Operation and maintenance Thermocooler HP	Operation and maintenance	English	04	5/2024
Commissioning record AHU	Commissioning	English	06	12/2025
Assembly Instructions Envistar Flex	Assembly instruction	English	07	10/2025
Assembly Instructions Envistar Top	Assembly instruction	English	04	11/2023
BACnet addresses for ThermoCooler, examples en	Configuration and settings	English	-	-
Modbus addresses for ThermoCooler, examples	Configuration and settings	English	-	-
EPD Environmental Product Declaration – ThermoCooler HP	Certificates and declarations	English	-	2025

Document	Document type	Language	Version		Download/Share
Loading…

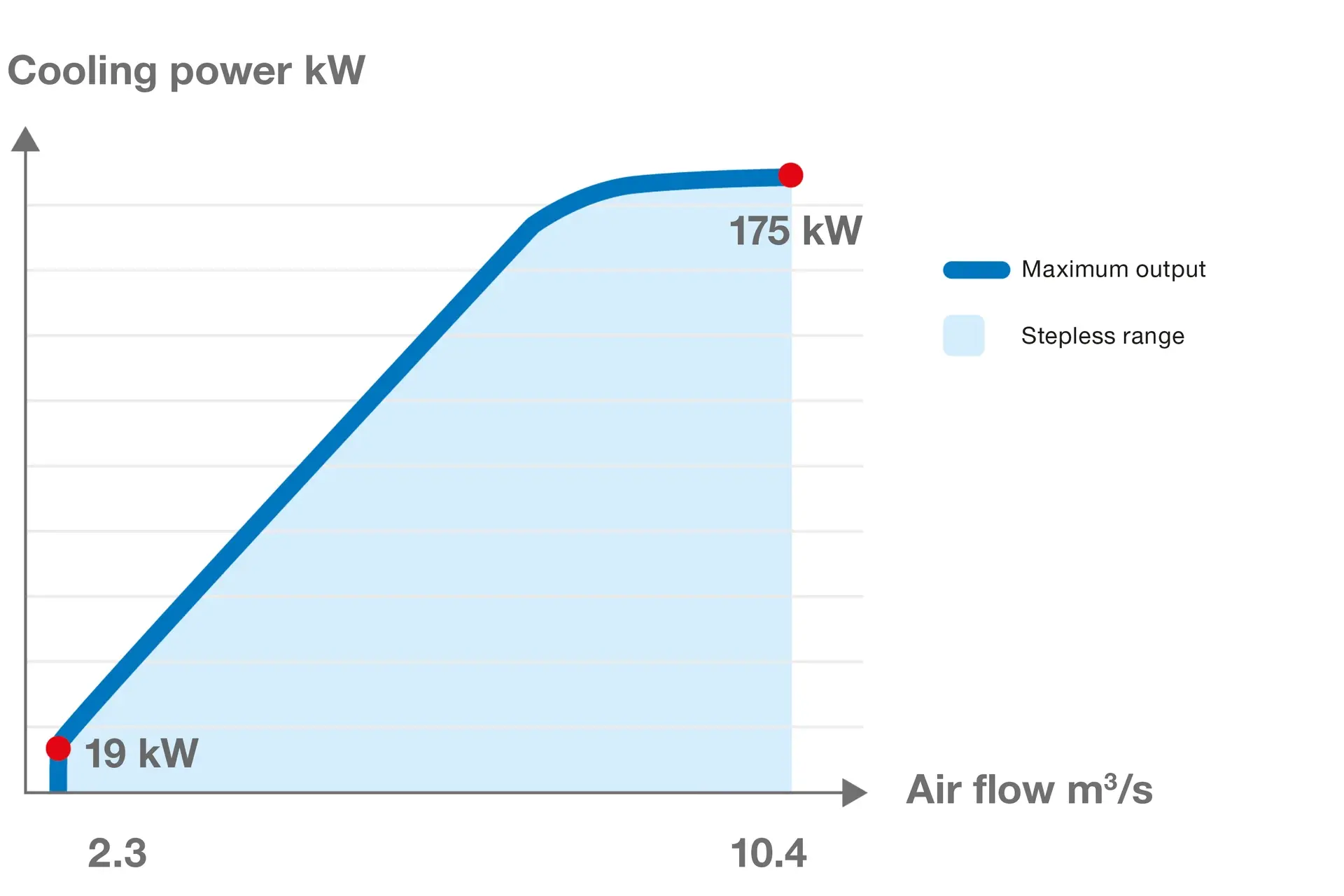

The example shows Envistar Flex with ThermoCooler HP in size 1280.

Stepless control

In some buildings, the air flow varies greatly, but there is still a requirement for close control of the supply air temperature. ThermoCooler HP meets the requirements through stepless control of the cooling and heating power via a frequency inverter.

The benefits of stepless control are:

low minimal air flow
optimal variable performance

Save floor space with top connection!

To achieve a comfortable indoor climate, air handling units are often installed in combination with cooling units on the roof. By integrating ThermoCooler HP, the roof can instead be used for something much more pleasant than equipment.

ThermoCooler HP is also available for our Envistar Top series, which saves floor space. An example from a recent construction shows that as much as 20 m² of floor space could be saved when installing three top-connected units compared to one end-connected unit.

Potential exists to significantly reduce the total construction cost or to create more leasable space.

Watch the video about the top-connected Envistar Top with the ThermoCooler HP reversible heat pump

Easy site transportation of Envistar Flex
with ThermoCooler HP

Thanks to the smart solutions of split design for the rotary heat exchanger and the reversible heat pump ThermoCooler HP, this large unit is easily transported through a standard door. To learn more, watch the video and get some helpful tips along the way!

Air flow: 4.5 m³/s
Unit size (mounted): W 2220 x H 2465 x L 3760 mm
Split in: 11 sections
Door size: 2100 x 900 mm

Learn more about Easy Access

Full control with IV Produkt Cloud

IV Produkt Cloud is a cloud service for our air handling units with integrated controls, giving you and your colleagues the ability to monitor your systems wherever you are.
